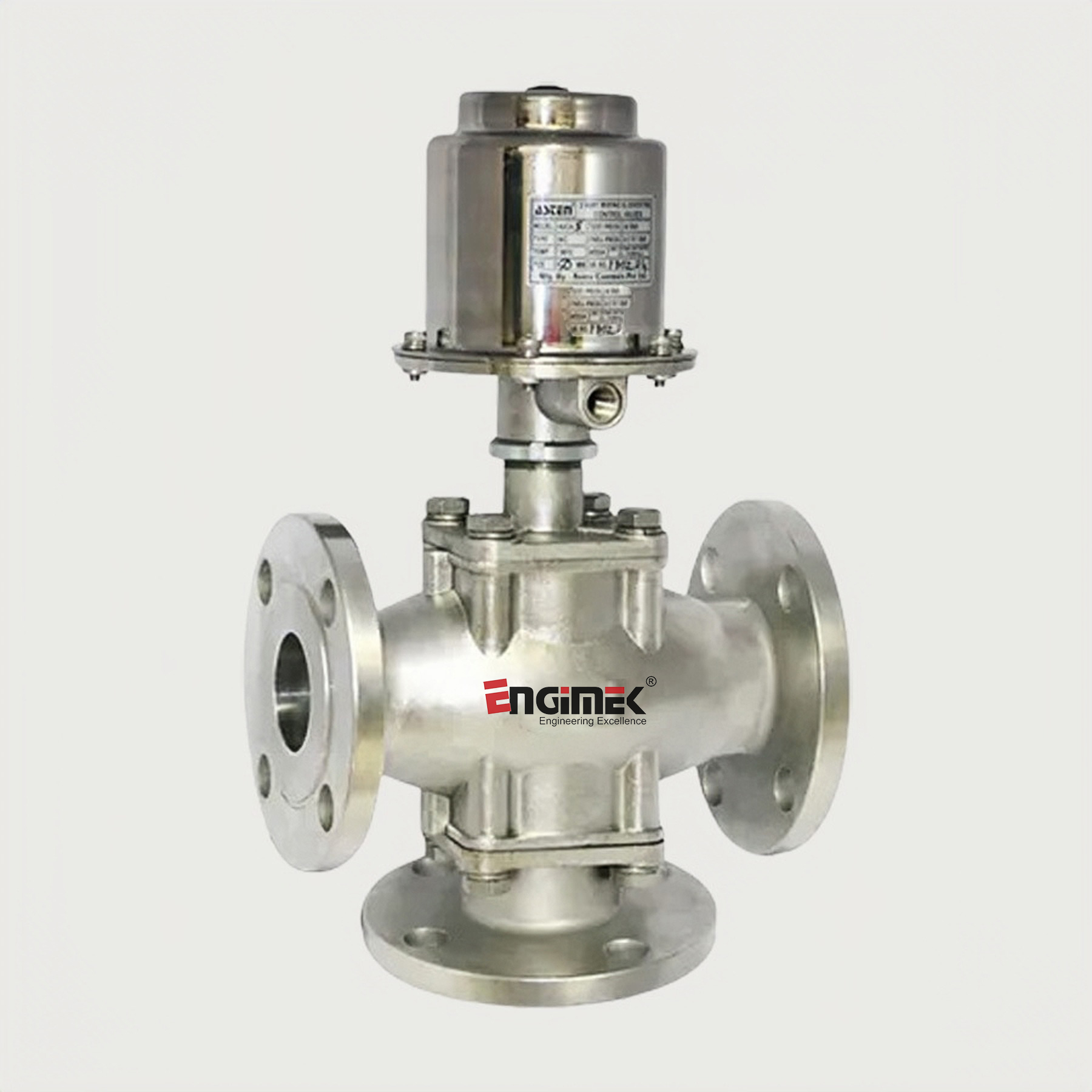

Mixing Diverting Flanged End Control Valve

Size :  1/2″ to 2″ Screwed / Flange

Body : ASTM A351 Gr. CF8/CF8M/CF3M

Steam : PTFE upto 180°C, Self-compensating (Spring Loaded)

Trim/Spindle : Stainless Steel S.S. 304/316/316L

Seat : Soft Seat (PTFE)

Gland Packing : Teflon ‘V’ Seals, backed by graphite wiper seal (Self Compensating)

Body : 42 bar Maximum

End Connection : Female Screwed to BSP or NPT / Flange / Triclover

Leakage : Drop tight/bubble tight, Class IV ANSI B16, 104, 1976

Operating Temp : On Steam Continues 150°C, Intermittent 180°C Maximum (High Temp. Above 180°C-On request)

Media : Air, Water, Oil, Gas, Steam & Chemical
