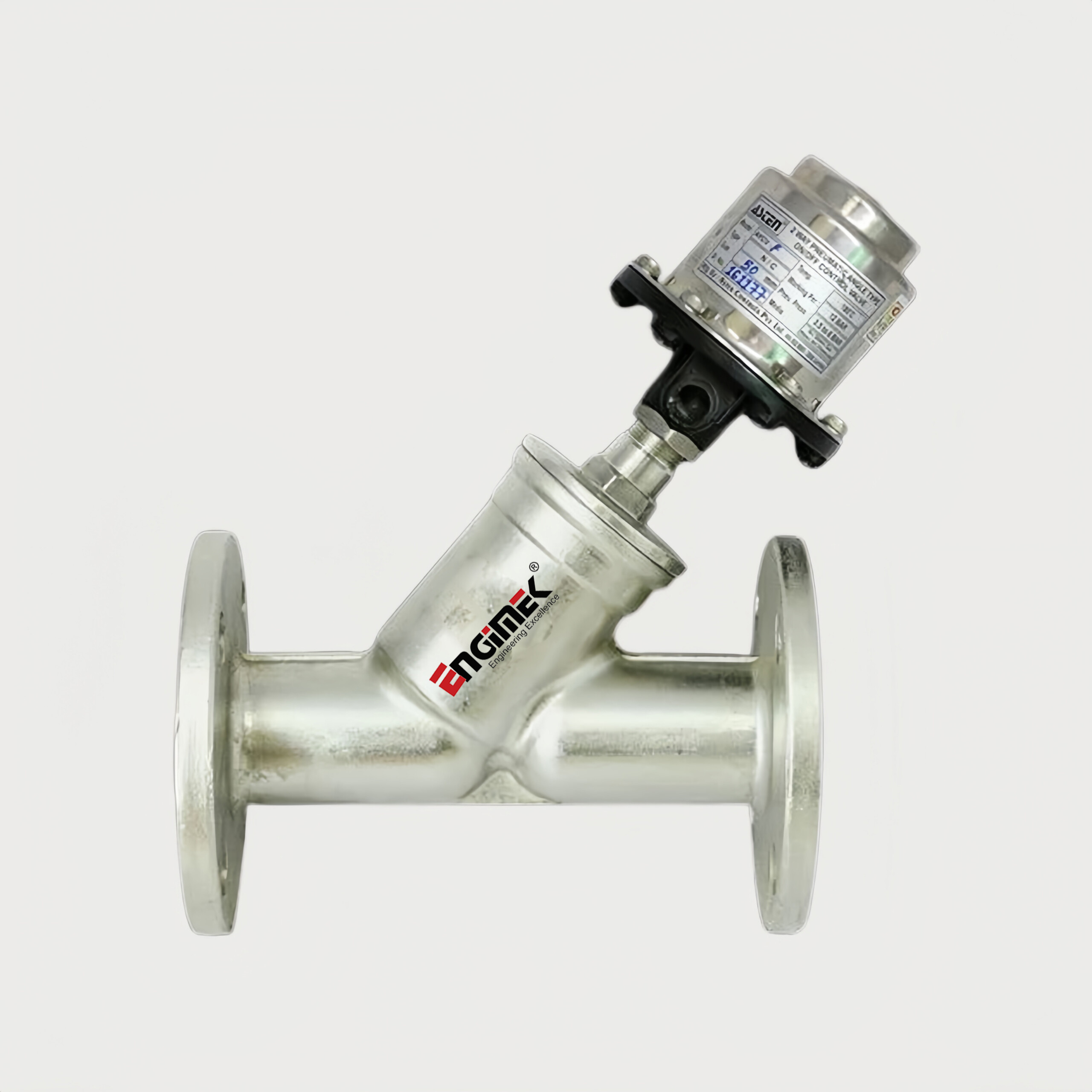

Y Type Flanged End Control Valve

Size : 1/2″ to 2″ Screwed / Flange

Body : ASTM A351 Gr. CF8 / CF8M/CF3M

Steam Packing : PTFE upto 180°C, Self-compensating (Spring Loaded)

Trim / Spindle : Stainless Steel S.S. 304/316/316L

Seat : Soft Seat (PTFE)

Gland Packing : Teflon ‘V’ Seals, backed by graphite wiper seal (Self Compensat)

Body Test Pressure : 24 bar Maximum

End Connections : Female Screwed to BSP or NPT / Flange / Triclover Working

Fluid Pressure : Refer to table

Leakage : Drop tight / bubble tight, Class IV ANSI B16, 104, 1976

Operating Temp. : On Steam – Continues 155°C, Intermittent 180°C Maximum (High Temp. Above 180°C – On request)

Media : Air, Water, Oil, Gas, Steam & Chemical
